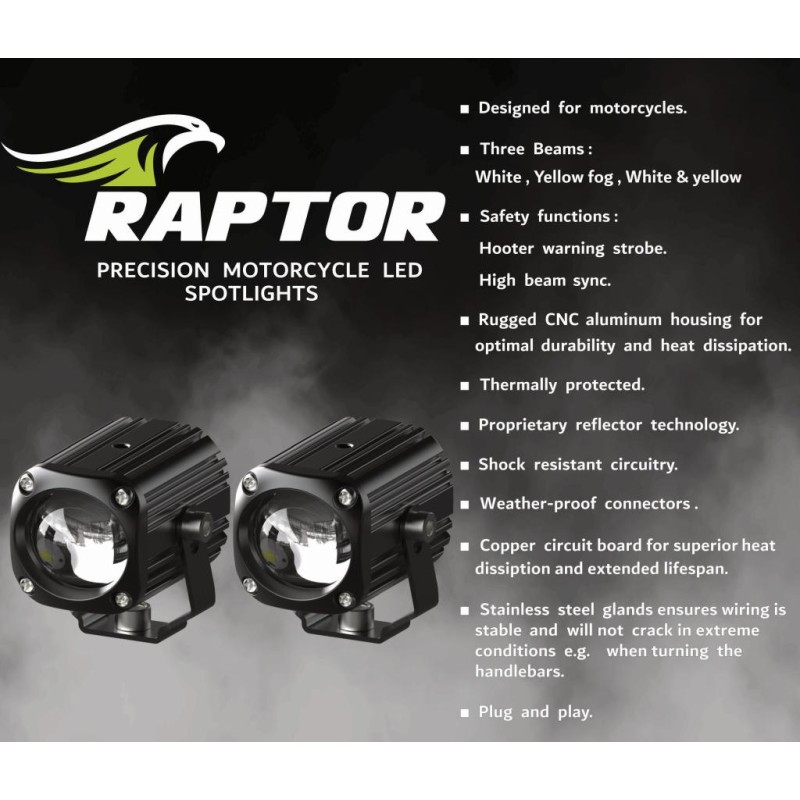

Desert Fox Raptor LED Spot Light Kit
The new Desert Fox Raptor LED Spot Light Kit represents an evolution of the original Raptor series.
Now with added features, yet remaining a cost effective lighting solution developed specifically for motorcycles.
The new Raptors now have an intelligent digital control box that produce 3 different beam colours, to suit varying riding conditions:
6500K White high beam
3200K Yellow low beam ( ideal for riding in fog and rain or as daylight running lights)
4500K White High beam and yellow low beam
Horn strobe: when the hooter is used, the main beams of the spotlight can strobe in conjunction, dramatically increasing your safety.
High/Low Beam synchronization: synchronize the spotlights with your bike’s high/low beam.
Beam :
Low white
Low yellow fog
High white
Combination low yellow fog and high white
Emergency:
Flashing yellow Fog
Low yellow fog & flashing white high
High flashing white
All at a very bright lumens output of 3000 lumens per light ( 6000 lumens in total), yet consuming a meager 25W per unit.
Such a light output far exceeds a traditional 100W halogen bulb, not only in sheer brightness but also in reduced power consumption.
A traditional spotlight set would consume 200W (2 x100W) while the Raptors only consume 50W (2 x 25w)
Or put another way, a lot less strain on your bikes charging system.
Features of the Desert Fox LED Spot Lights:
Extremely compact design which allows for fitting in restricted areas e.g behind body panels
A proprietary reflector technology that provides the ultimate focus for long range driving beam projection.
A robust laser cut glass lens with a light transmittance of greater than 92%. Most manufacturers use a plastic acrylic lens.
All circuitry is shock resistant, important for motorcycle use.
A unique copper PCB board for rugged off road use- other manufacturers do not use copper resulting in a cracked circuit when used off road.
Weather- proof connectors, silicone wiring and stainless steel fittings.
A unique gland to ensure wiring is stable and will not crack in extreme conditions e.g. when turning the handlebars over the lifetime of your bike.
Rugged aluminum housing for optimal durability and heat dissipation.
Hard oxidised T6063 CNC aluminum body for optimal durability and heat dissipation.
Unique T6063 CNC aluminum intelligent relay provides effective battery protection to prevent battery drainage.
Unique 2-button illuminated handlebar switch for hassle-free operation.
The handlebar switch changes colours according to the function selected.
Luminous flux: 6000 lumens per set.
Extended beam distance > 350 meters.
Power consumption: 50w per set.
Operating Voltage: 12~15V
Anti-drop height: 1M
Reverse voltage protected.
Plug and play. No cutting of existing wiring is required. Simply connect to your battery with the supplied wiring kit.
Service life of 50 000 hours with no filaments for total peace of mind.
Full range of model specific mounts available.
Optional crash bar mounts available.
Kit Includes:
2 spotlights & mounting brackets.
Full wiring harness including inline fuse and intelligent digital control box.
Waterproof handle bar switch which enables you to operate the system without removing your hand from the handle bar.
*NOTE: Please note that these spotlights are not compatible with the HEX ezCAN
Desert Fox Raptor LED Spot Light Kit
